Diagramas
| Descripcion: | |
| Código: |
Diagramas Relacionados

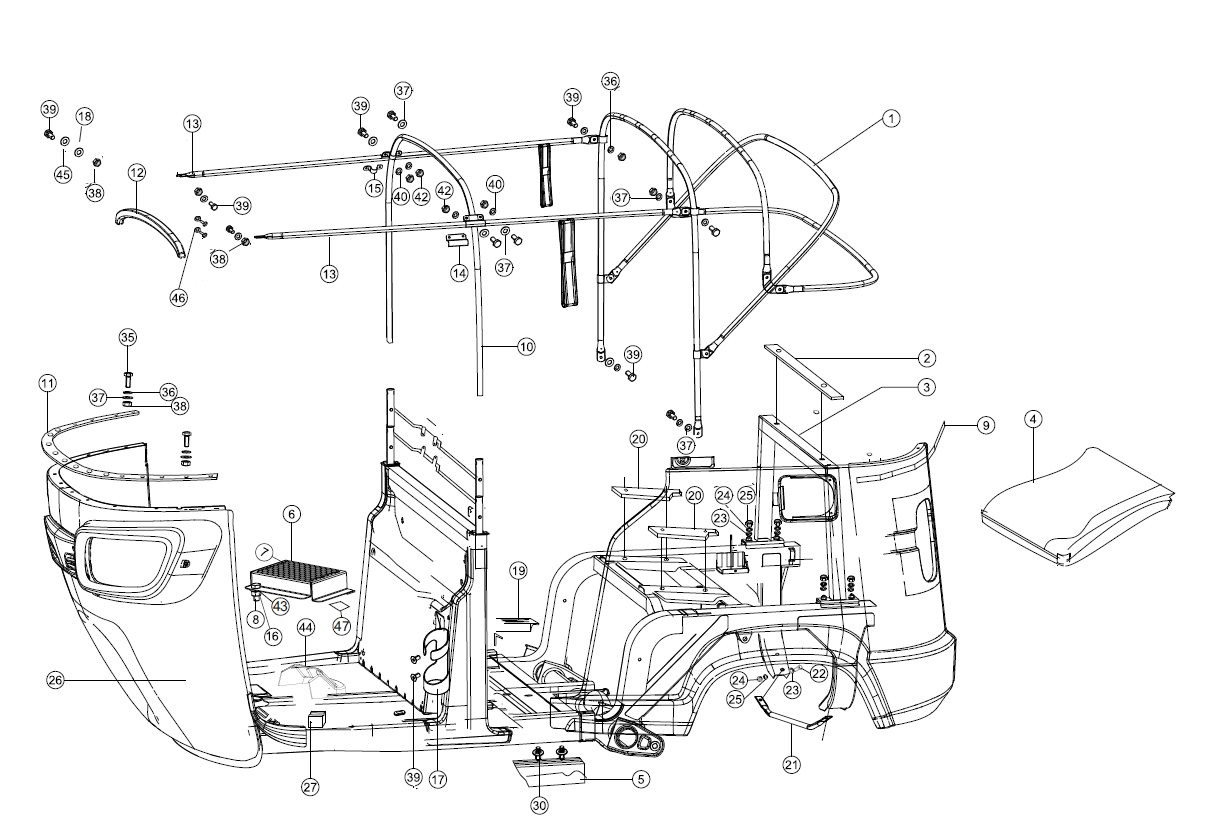

| Figura |   ÂNúm. Parte |   ÂDescripción | Cantidad Sugerida | Â
|---|---|---|---|
| 1 | G5220920 | ESTRUCTURA LONA | 1 |
| 2 | G5122610 | EMPAQUE CABINA | 2 |
| 3 | G5121870 | SOPORTE ESTRUCTURA LONA | 1 |
| 4B | G52225003D | Canvas Kit Soft Top Rik Black | 1 |
| 4A | G52225001F | LONA COMPLETA (Color Blanco) | 1 |
| 4 | G52225007H | LONA COMPLETA (Color Café) | 1 |
| 5 | G5230310 | HULE ANTIDERRAPANTE IZQUIERDO | 1 |
| 6 | G4110380 | Rider Footrest Kit | 1 |
| 7 | G4110370 | POSAPIE | 1 |
| 8 | P1200170 | Hex Screw M10X25 Foot Rest | 1 |
| 9 | G5122510 | VISTA CABINA | 1 |
| 10 | G5220910 | SOPORTE CENTRAL LONA | 1 |
| 11 | G5120830 | EMPAQUE PARABRISAS | 1 |
| 12 | G5122080 | EMPAQUE PARABRISAS | 1 |
| 13 | G5220170 | TUBO LATERAL LONA | 2 |
| 14 | G5221250 | SOPORTE ESTRUCTURA | 2 |
| 15 | G5221110 | ABRAZADERA DE ESTRUCTURA | 2 |
| 16 | 330328 | ARANDELA DE ONDA | 1 |
| 17 | G5300050 | PORTA BOTELLA | 1 |
| 18 | P1200050 | ARANDELA DE PRESION | 2 |
| 19 | G5230360 | HULE ANTIDERRAPANTE DERECHO | 1 |
| 20 | G5120779 | SOPORTE | 2 |
| 21 | G5123720 | SOPORTE | 1 |
| 22 | R1200310 | Hex flange screw M8 x20 | 2 |
| 23 | G5200400 | Punched Washer 8.5 X20X2.0 | 6 |
| 24 | G5110210 | Wave Spring Washer M8 Cabin Mtg | 6 |
| 25 | G5200330 | Hex Nut M8 | 6 |
| 26 | G51239603D | BASTIDOR | 1 |
| 27 | G5122640 | HULE | 1 |
| 30 | A128730 | TORNILLO | 6 |
| 35 | 420462700 | TORNILLO - M6x20 | 10 |
| 36 | 0330408 | RONDANA - M6 | 20 |
| 37 | 0335578 | RONDANA - 5.5x12x1 | 21 |
| 38 | 420305700 | TUERCA - M6 | 16 |
| 39 | 0332275 | TORNILLO - M6x16 | 10 |
| 43 | K200160 | TUERCA | 1 |
| 44 | G5230590 | CUBIERTA CABLE DELUXE | 1 |
| 45 | G5200300 | ARANDELA | 4 |
| 46 | 0335558 | RONDANA - 5.5x12x1 | 4 |
| 47 | N4221130 | Pad Cushion Foot Rest | 2 |
