Diagramas
| Descripcion: | |
| Código: |

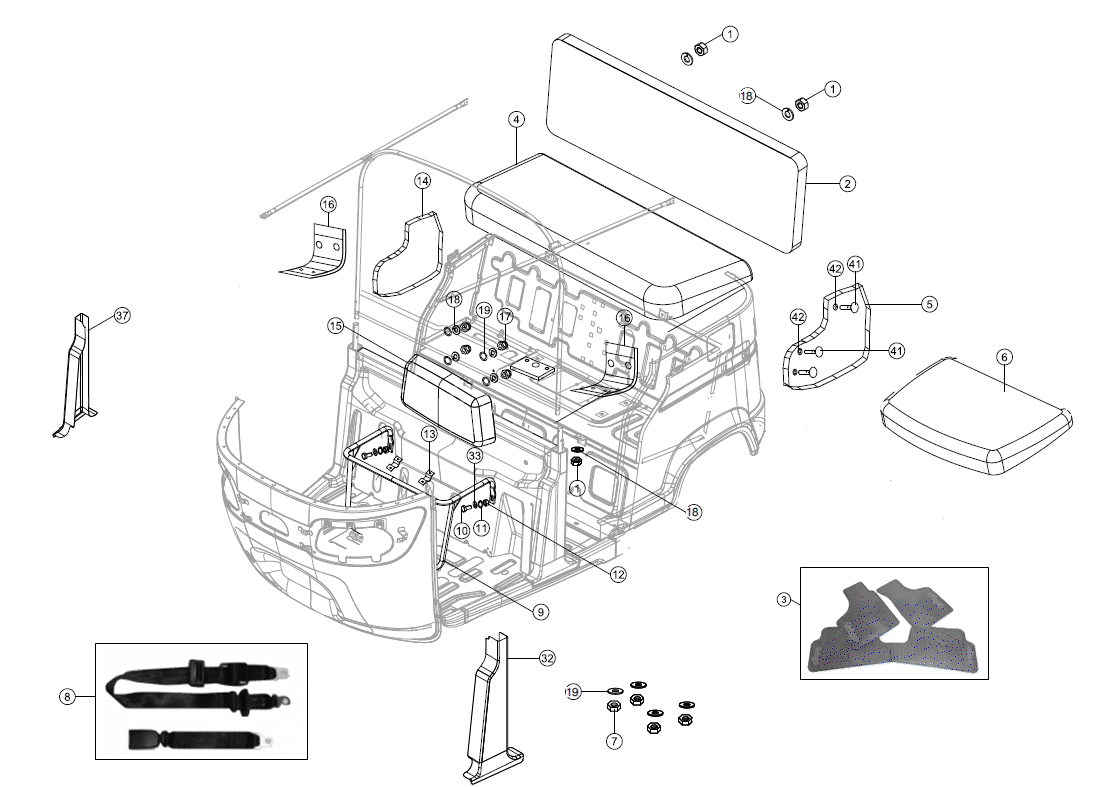

Diagramas Relacionados
| Figura |   ÂNúm. Parte |   ÂDescripción | Cantidad Sugerida | Â
|---|---|---|---|
| 1 | P1200060 | CANCELADO | 5 |
| 2 | G31304400D | RESPALDO PASAJEROS (Color Negro) | 1 |
| 3 | G4300020 | JUEGO DE CINTURON ASIENTO | 3 |
| 4 | G51300200D | ASIENTO PASAJEROS (Color Negro) | 1 |
| 5 | G52210390D | CUBIERTA LATERAL IZQUIERDA | 1 |
| 6 | G4130040 | ASIENTO DELUXE | 1 |
| 7 | G5200320 | TUERCA | 7 |
| 8 | G4300050 | JUEGO D/TAPETES KING | 1 |
| 9 | G5230630 | Frame Comp Seat Driver New | 0 |
| 10 | G5200380 | Hex Screw M8X 20 | 2 |
| 11 | G5200280 | Punched Washer 8.5 X 25 X 2 | 2 |
| 12 | G5200330 | Hex Nut M8 | 2 |
| 13 | G4220130 | Brkt Seat Hook | 2 |
| 14 | G52210490D | CUBIERTA LATERAL DERECHA | 1 |
| 15 | G4300200 | RESPALDO ASIENTO DELUXE | 1 |
| 16 | G5222779 | Seat Base Middle Reinforcement | 2 |
| 17 | G5200220 | Domed Nut M6X1 | 4 |
| 18 | P1200050 | ARANDELA DE PRESION | 9 |
| 19 | N3200120 | ARANDELA - 6.5x13x1 | 12 |
| 32 | G5120149 | BASE POSAPIE | 1 |
| 33 | G5110210 | Wave Spring Washer M8 Cabin Mtg | 2 |
| 37 | G5120169 | SOPORTE ASIENTO | 1 |
| 41 | 0331708 | TORNILLO M5X12 | 6 |
| 42 | 0335558 | RONDANA - 5.5x12x1 | 6 |
