Diagramas
| Descripcion: | |
| Código: |
Diagramas Relacionados

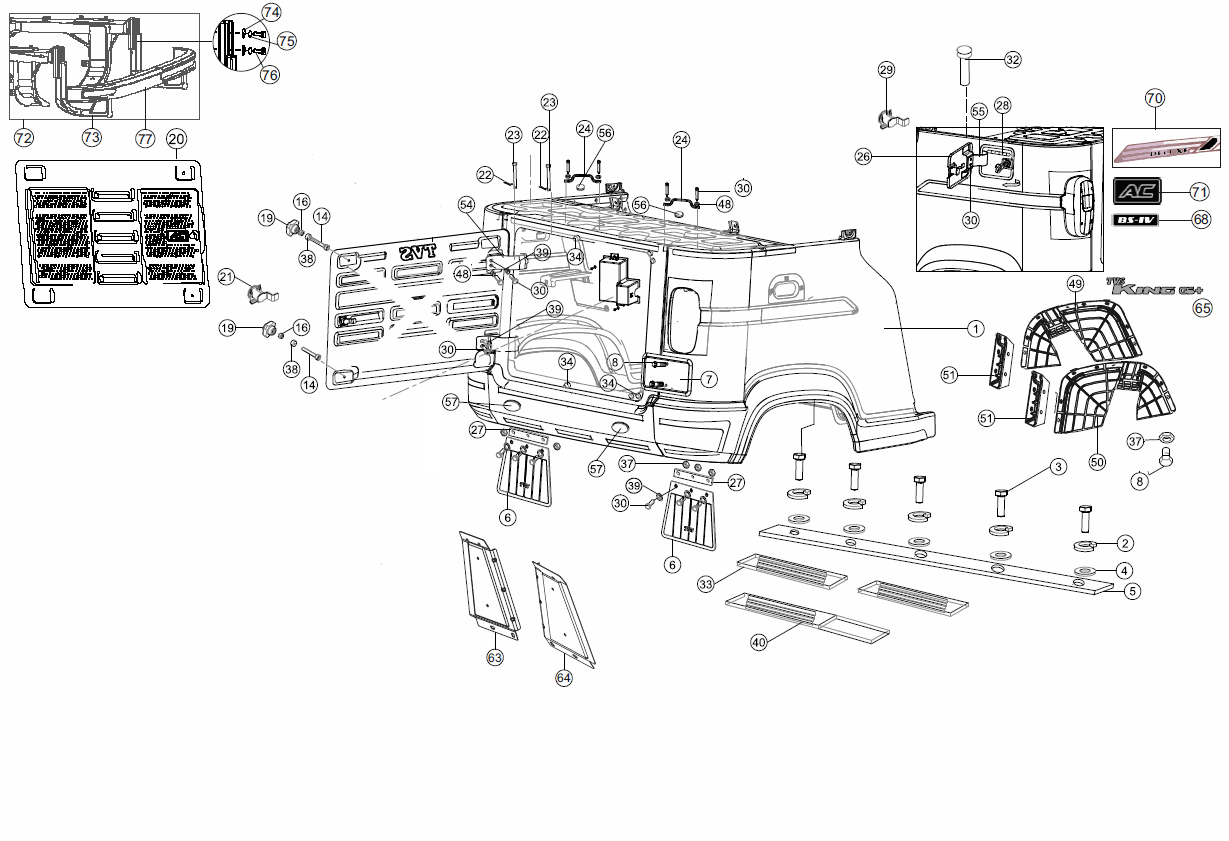

| Figura |   ÂNúm. Parte |   ÂDescripción | Cantidad Sugerida | Â
|---|---|---|---|
| 1A | G52214905G | Passenger Cabin Red | 1 |
| 1 | G52214903F | Passenger Cabin White | 1 |
| 2 | G5110210 | Wave Spring Washer M8 Cabin Mtg | 10 |
| 3 | G5200270 | HexScrewM8x1.25x25 | 10 |
| 4 | G5200280 | Punched Washer 8.5 X 25 X 2 | 10 |
| 5 | G5120769 | Packing Floor Cabin | 2 |
| 6 | G5221660 | LODERAS | 3 |
| 7 | G52208905R | PLATO PORTAPLACA (AMARILLO) | 2 |
| 8 | N3200220 | TORNILLO M6 X 16 | 14 |
| 14 | G5200430 | TORNILLO - M5x35 | 2 |
| 16 | G5200320 | TUERCA | 2 |
| 20C | G42210805G | Tail Door Assy Red Mesh Type (Ni) | 1 |
| 20B | G42210803F | Tail Door Assy White Mesh Type (Ni) | 0 |
| 20A | G52206003F | PUERTA TRASERA BLANCO | 1 |
| 20 | G52206003D | PUERTA TRASERA NEGRO | 1 |
| 21 | G5320390 | CANDADO TRASERO | 1 |
| 21A | G4221100 | CERRADURA PUERTA TRASERA MALLA | 1 |
| 22 | 0330048 | CHAVETA 2X20 | 3 |
| 23 | G2200610 | Pin Hinge Tail Door | 1 |
| 24 | G5220270 | AGARRADERA | 2 |
| 26A | G52206505G | Lid Comp Fuel Tank Red | 1 |
| 26 | G52206503F | TAPA TANQUE CONBUSTIBLE BLANCO | 1 |
| 27 | G5123400 | SOPORTE ZOQUETERA | 3 |
| 27A | G4220820 | Brkt Rear Mud Flap | 2 |
| 28 | G5230470 | PERFIL TAPA COMBUSTIBLE | 3 |
| 29 | G5320380 | CANDADO TAPON GASOLINA | 1 |
| 30 | P1200070 | TORNILLO M6X16 | 19 |
| 32 | G5221140 | Pin Hinge Fuel Tank | 1 |
| 34 | G5221640 | Grommet Tail Door | 6 |
| 37 | P1200060 | CANCELADO | 19 |
| 38 | G5222440 | EMPAQUE PERILLA DE PUERTA | 3 |
| 39 | N3200120 | ARANDELA - 6.5x13x1 | 15 |
| 40 | G5122610 | EMPAQUE CABINA | 1 |
| 48 | P1200050 | ARANDELA DE PRESION | 4 |
| 49 | G5230520 | SALPICADERA INTERIOR IZQUIERDA | 1 |
| 50 | G5230530 | SALPICADERA INTERIOR DERECHA | 1 |
| 51 | G5230540 | COMPLEMENTO SALPICADERA | 2 |
| 54 | G5222230 | Hinge Comp Tail Door | 2 |
| 55 | G5220679 | Hinge Fuel Tank | 1 |
| 56 | G5230410 | Grommet 20X16 Cabin LH Luggage Area | 1 |
| 57 | G5230420 | Grommet Dia20 Cut Out Bumper | 2 |
| 63 | G5222819 | SOPORTE CUBIERTA IZQ | 1 |
| 64 | G5222829 | SOPORTE CUBIERTA DER | 1 |
| 65 | G4221270 | Sticker GS+ Petrol (Ni) | 1 |
| 68 | G4210510 | Sticker BSIV (Ni) | 1 |
| 69 | G4220580 | CALCOMANIA IZQ DELUXE | 1 |
| 70 | G4220610 | CALCOMANIA DER DELUXE | 1 |
| 71 | G4221380 | Sticker (AC) Mesh Type (Ni) | 1 |
| 72 | G43222595R | DEFENSA DELUXE | 1 |
| 73 | G4300270 | SOPORTE DEFENSA DELUXE | 2 |
| 74 | G5200400 | Punched Washer 8.5 X20X2.0 | 6 |
| 75 | 0330318 | RONDANA - M8 | 6 |
| 76 | G5200380 | Hex Screw M8X 20 | 6 |
| 77 | G43002805R | Bumper Comp. Yellow | 1 |
